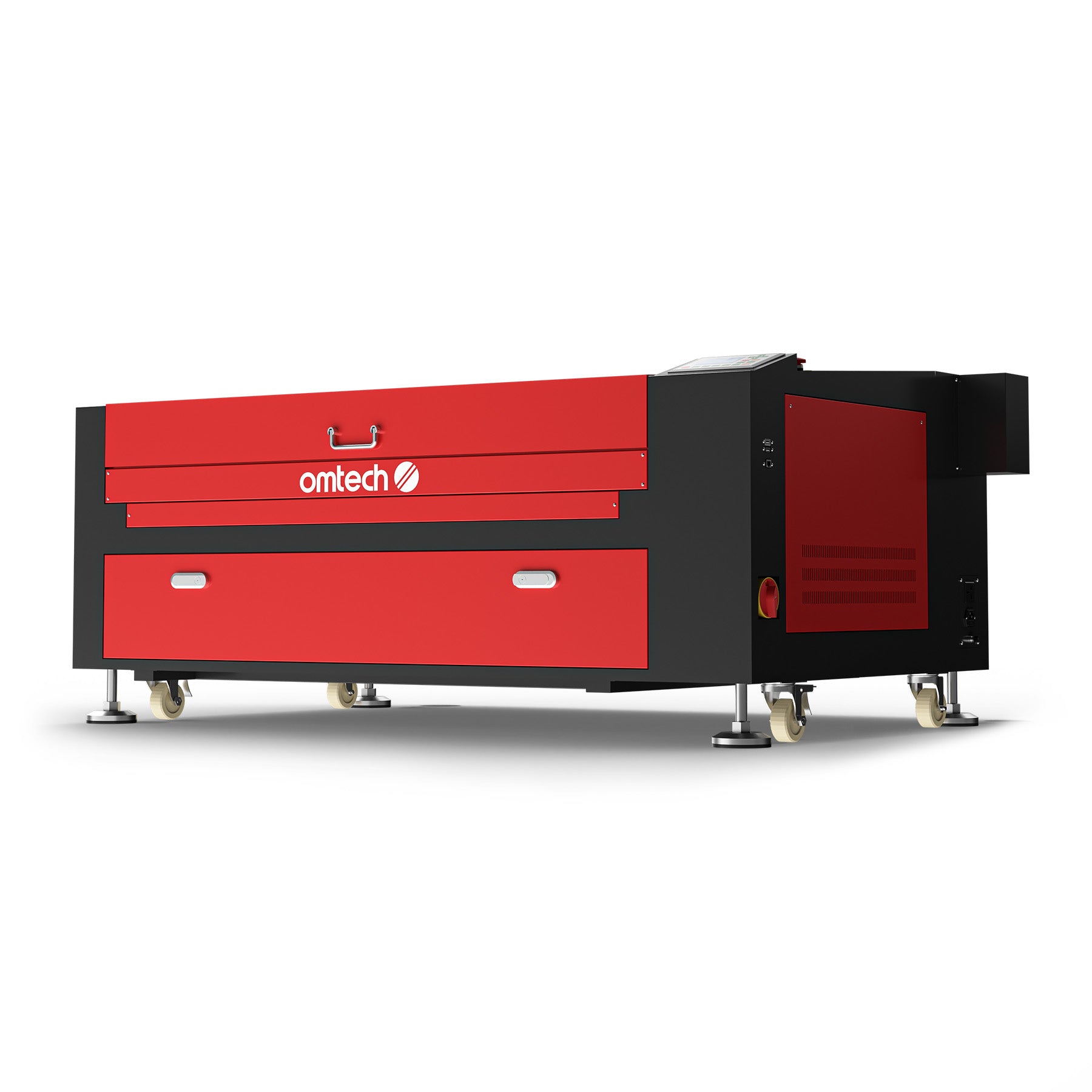

AF2440-100 - 100W CO2 Laser Engraver Cutting Machine with 1000 × 600 MM Working Area and Auto Focus

AF2440-100 - 100W CO2 Laser Engraver Cutting Machine with 1000 × 600 MM Working Area and Auto Focus

Product ID: USB-1006-A0

Regular price A$6,699.99 Sale price A$5,999.99 Save A$700
/
Free & fast shipping from Australia
Learn more
Shipping calculated at checkout.
FEATURES
100W CO2 Laser Cutting Power

OMTech's 100W CO2 laser engraver engraves as deep as 10 mm on wood, glass, acrylic, leather, and more nonmetallic materials at speeds up to 600 mm/s. Increases response speed, performance, and cutting power

Two-Way Pass-Through

Allows you to work pieces much larger than the bed size by sliding them through as you go

Dual Workbeds

1000×600 mm workbed with both honeycomb and knife blade engraving platforms to handle a wide variety of objects and materials

RUIDA Digital Controller

The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects, adjusting laser power and speed settings, file viewing, and project framing via Windows-compatible RDWorks v8

Liner Rail Guiding System

Equipped with X and Y stepper motors for efficient power transmission between the guide rails with high precision and long service life.

USB & Ethernet Ports

2 USB ports allow flash drive connectivity and a USB-to-USB PC connection

Compatible with LightBurn Software

All OMTech CO2 laser machines of 50W and up are compatible with Light Burn software.

Certifications: Designed and engineered in USA

• FDA Compliant

• CE Certification

Safety Ensurance

Air Assist

Built-in Ventilation

Water Flow Sensor

Automatic Shutdown

2-Year Warranty

2-year warranty on machine parts and hardware (exclusions apply);

1-year warranty on laser tubes and power supplies of 70W and up;

6-month warranty on laser tubes and power supplies 40W—60W.

Tech Support

24/7 professional customer support and technical assistance

SPECS
  • Laser Output

    100W

  • Net Weight

    344 lb. (156 kg)

  • Overall Dimensions

    154 x 95 x 66 cm

  • Max. Engraving Speed

    600 mm/s

  • Max. Engraving/Cutting Thickness

    10 mm (depending on materials)

  • Processing Area

    1000 × 600 mm

  • Front & Back Pass-Through Size

    1140 x 50 mm

  • Bundled Software

    RDWorks

  • Compatible Software (not incl.)

    LightBurn, CorelDRAW, AutoCAD

  • Data Transmission

    USB Cable, Ethernet Cable, USB Flash Drive, Offline

  • Compatible System

    Windows 2400, XP, Vista, 7, 8, 10

  • Supported Image Formats

    .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff,.tga

  • Laser Tube Length

    1450 mm

  • Est. Service Life

    12,000 hr.

  • Focal Lens Diameter

    18 mm

YOU CAN ENGRAVE AND CUT THESE MATERIALS
  • Acrylic
  • Wood
  • Leather
  • Plastics
  • Fabrics
  • Glass
  • Rubber
  • Cork
  • Brick
  • Granite
  • Marble
  • Tile
  • River Rock
  • Bone
  • Melamine
  • Phenolic
  • Aluminum
  • Stainless Steel
  • Titanium
YOU CAN ENGRAVE AND CUT THESE MATERIALS
  • Acrylic
  • Wood
  • Leather
  • Plastics
  • Fabrics
  • Glass
  • Rubber
  • Cork
  • Brick
  • Granite
  • Marble
  • Tile
  • River Rock
  • Bone
  • Melamine
  • Phenolic
  • Aluminum
  • Stainless Steel
  • Titanium
